    • Optimal beam control, compact design

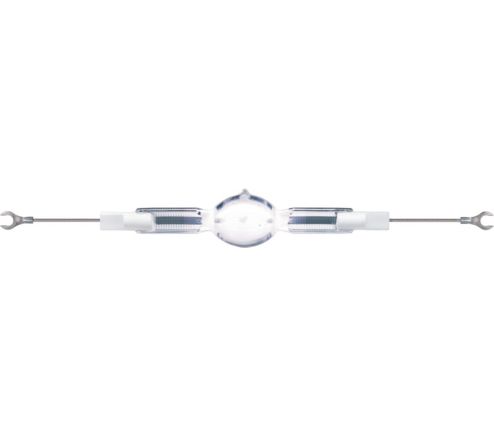

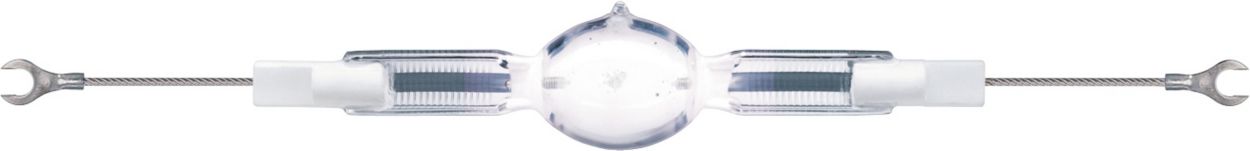

      MASTER MHN-SB 2000W/956 400V K12s-7 WH HO
      MASTER MHN-SB 2000W/956 400V K12s-7 WH HO

      MASTER MHN-SB 2000W/956 400V K12s-7 WH HO

      Order code: 92860000

      Full Product Code: 872790092860000

      Downloads

      Leaflet
      Size:370.2 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    CABLE  [ Cable]
    Operating position
    P15  [ Parallel +/-15D or Horizontal(HOR)]
    Life to 5% failures (nom.)
    1700 h
    Life to 10% failures (nom.)
    2300 h
    Life to 20% failures (nom.)
    3000 h
    Life to 50% failures (nom.)
    4500 h
    Light Technical
    Colour Code
    956  [ CCT of 5,600 K]
    Luminous flux (rated) (min.)
    215000 lm
    Luminous flux (rated) (nom.)
    220000 lm
    Colour designation
    Daylight
    Lumen maintenance 1,000 hours (nom.)
    95 %
    Lumen maintenance 2,000 hours (nom.)
    91 %
    Chromaticity coordinate X (nom.)
    334
    Chromaticity coordinate Y (nom.)
    366
    Correlated Colour Temperature (Nom)
    5600 K
    Luminous efficacy (rated) (nom.)
    108 lm/W
    Colour-rendering index (min.)
    -
    Color rendering index (nom.)
    81
    Operating and Electrical
    Lamp supply voltage
    400 V  [ 400]
    Power (Rated) (Nom)
    2070.0 W
    Lamp current run-up (max.)
    17 A
    Lamp current (EM) (nom.)
    11.8 A
    Ignition supply voltage (min.)
    360 V
    Voltage (Max)
    220 V
    Voltage (Min)
    185 V
    Voltage (Nom)
    205 V
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Lamp Finish
    Clear
    Cap-base information
    na  [ -]
    Approval and Application
    Energy efficiency label (EEL)
    A+
    Mercury (Hg) content (nom.)
    215 mg
    Energy consumption kWh/1,000 hours
    2277 kWh
    UV
    Specific eff. radiant power
    60 mW/klm
    Luminaire Design Requirements
    Bulb temperature (max.)
    1015 °C
    Pinch temperature (max.)
    450 °C
    Product Data
    Full product code
    872790092860000
    Order product name
    MASTER MHN-SB 2000W/956 400V K12s-7 WH HO
    EAN/UPC – product
    8718291548454
    Order code
    92860000
    SAP numerator – quantity per pack
    1
    SAP numerator – packs per outer box
    1
    Material no. (12 NC)
    928196805130
    SAP net weight (piece)
    0.058 kg
    Installation Diagrams
    Cable
    Cable
    OpPos_p15.eps-Operating position
    OpPos_p15.eps-Operating position
    Performance Diagrams
    LDRU_MHN-SB_K12s-7-WH-HO-Lamp performance during run-up
    LDRU_MHN-SB_K12s-7-WH-HO-Lamp performance during run-up
    LDLM_MHN-SB_0002-Lumen maintenance diagram
    LDLM_MHN-SB_0002-Lumen maintenance diagram
    LDLE_MHN-SB_0002-Life expectancy diagram
    LDLE_MHN-SB_0002-Life expectancy diagram
    Photometrics
    LDPB_MHN-SB_2000W_956-Spectral power distribution B/W
    LDPB_MHN-SB_2000W_956-Spectral power distribution B/W
    LDPO_MHN-SB_2000W_956-Spectral power distribution Colour
    LDPO_MHN-SB_2000W_956-Spectral power distribution Colour
