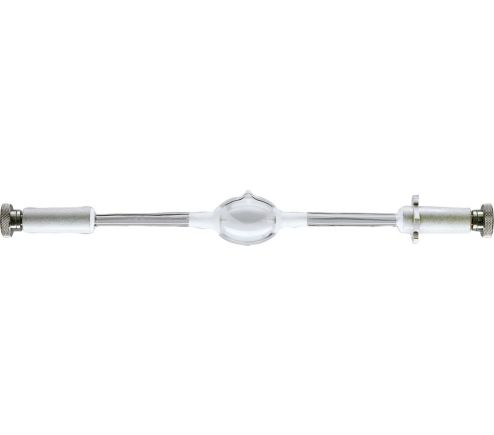

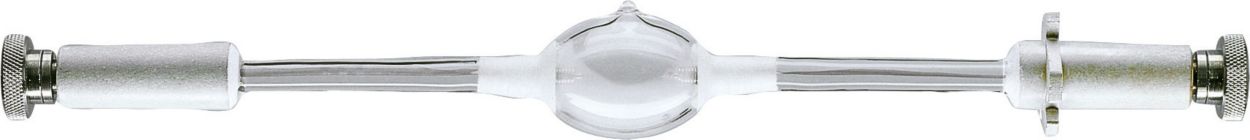

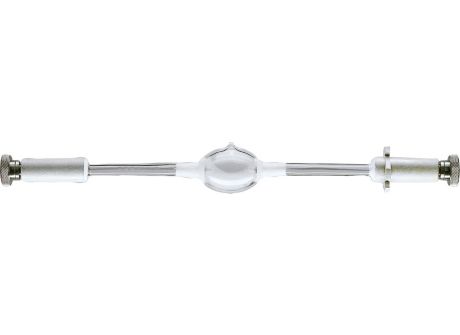

MASTER MHN-SA 1800W/956 (P)SFC 400V

Specifications Show all

General information

Cap base	(P)SFC  [ (P)SFC]
Operating position	P15  [ Parallel +/-15D or Horizontal(HOR)]
Life to 5% failures (nom.)	1700 h
Life to 10% failures (nom.)	2400 h
Life to 20% failures (nom.)	3600 h
Life to 50% failures (nom.)	6100 h

Light technical

Colour Code	956  [ CCT of 5,600 K]
Luminous flux (rated) (nom.)	160000 lm
Colour designation	Daylight
Lumen maintenance 1,000 hours (nom.)	90 %
Lumen maintenance 2,000 hours (nom.)	81 %
Lumen maintenance 5,000 hours (nom.)	71 %
Chromaticity coordinate X (nom.)	330
Chromaticity coordinate Y (nom.)	339
Correlated Colour Temperature (Nom)	5600 K
Luminous efficacy (rated) (nom.)	86 lm/W
Colour rendering index (nom.)	86

Operating and electrical

Lamp supply voltage	400 V  [ 400]
Power (Rated) (Nom)	1850.0 W
Lamp current run-up (max.)	15 A
Lamp current (EM) (nom.)	10.5 A
Ignition supply voltage (min.)	342 V
Voltage (Max)	220 V
Voltage (Min)	185 V
Voltage (Nom)	205 V

Controls and dimming

Dimmable

No

Mechanical and housing

Lamp Finish	Clear
Cap-base information	20-6
Bulb shape	TD40  [ TD 40mm]

Approval and application

Mercury (Hg) content (nom.)	234 mg
Energy consumption kWh/1,000 hours	2035 kWh

Luminaire design requirements

Bulb temperature (max.)	980 °C
Pinch temperature (max.)	300 °C
Pinch Temperature (Max)-DUP(do not use)	300 °C

Product data

Full product code	871150020076100
Order product name	MASTER MHN-SA 1800W/956 (P)SFC 400V
EAN/UPC – product	8718291548270
Order code	20076100
SAP numerator – quantity per pack	1
Local code description	16171764
Numerator – packs per outer box	1
SAP material	928079315130
Net Weight (Piece)	0.220 kg
ILCOS code	MN-1800-E-PSFc20=6-/H
