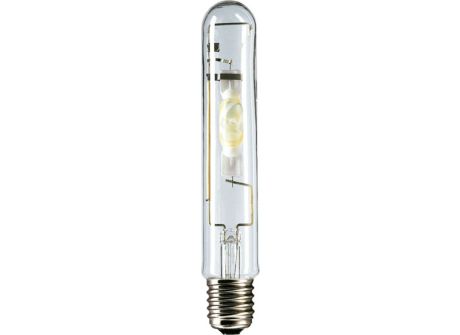

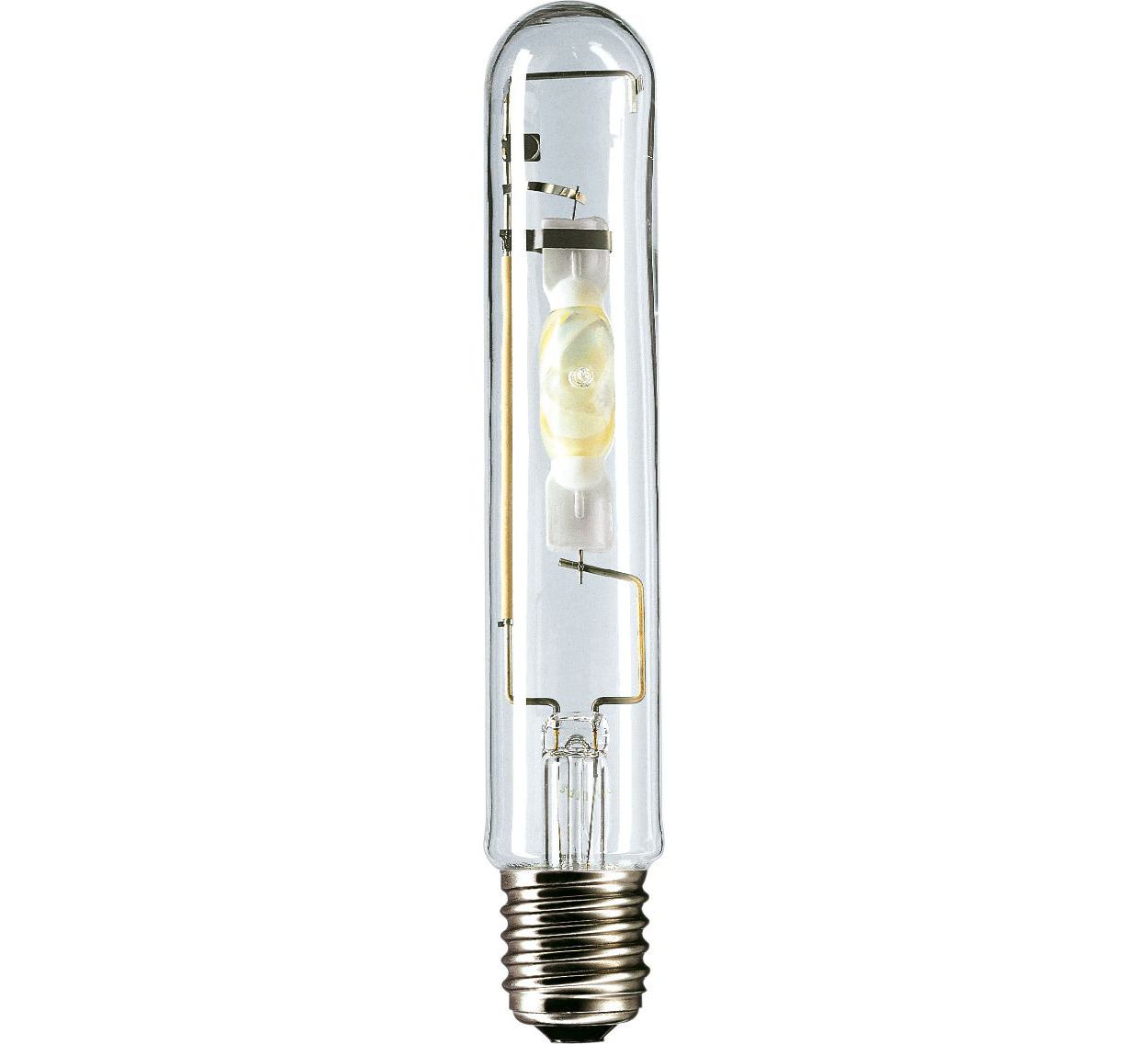

MASTER HPI-T Plus 250W/645 E40 1SL/12

Specifications Show all

General information

Cap base	E40  [ E40]
Operating position	P20  [ Parallel +/-20D or Horizontal(HOR)]
Life to 5% failures (nom.)	5000 h
Life to 10% failures (nom.)	7500 h
Life to 20% failures (nom.)	11000 h
Life to 50% failures (nom.)	20000 h
System description	Horizontal  [ Horizontal Operating Position]

Light technical

Colour Code	645  [ CCT of 4,500 K]
Luminous flux (rated) (min.)	17550 lm
Luminous flux (rated) (nom.)	19500 lm
Colour designation	Cool White (CW)
Lumen maintenance 10,000 hours (nom.)	70 %
Lumen maintenance 2,000 hours (min.)	75 %
Lumen maintenance 2,000 hours (nom.)	90 %
Lumen maintenance 20,000 hours	60 %
Lumen maintenance 5,000 hours (min.)	65 %
Lumen maintenance 5,000 hours (nom.)	80 %
Chromaticity coordinate X (nom.)	365
Chromaticity coordinate Y (nom.)	377
Correlated Colour Temperature (Nom)	4500 K
Luminous efficacy (rated) (nom.)	79 lm/W
Colour rendering index (nom.)	65

Operating and electrical

Power (Rated) (Nom)	247 W
Lamp current run-up (max.)	3.9 A
Lamp current (EM) (nom.)	2.1 A
Ignition supply voltage (max.)	198 V
Ignition peak voltage (max.)	560 V
Ignition supply voltage (min.)	198 V
Ignition time (max.)	10 s
Voltage (Max)	138 V
Voltage (Min)	118 V
Voltage (Nom)	128 V

Controls and dimming

Dimmable

No

Mechanical and housing

Lamp Finish	Clear
Bulb shape	T46  [ T 46mm]

Approval and application

Mercury (Hg) content (nom.)	36 mg
Energy consumption kWh/1,000 hours	272 kWh

Luminaire design requirements

Bulb temperature (max.)	550 °C
Cap-base temperature (max.)	250 °C
Cap-Base Temperature (Max)-DUP(do not use)	482 °F

Product data

Full product code	871150017989015
Order product name	MASTER HPI-T Plus 250W/645 E40 1SL/12
EAN/UPC – product	8711500179890
Order code	17989015
SAP numerator – quantity per pack	1
Local code description	MASTER HPI-T PLUS 250W/645 E40 1SL/12
Numerator – packs per outer box	12
SAP material	928481300098
Net Weight (Piece)	0.142 kg
