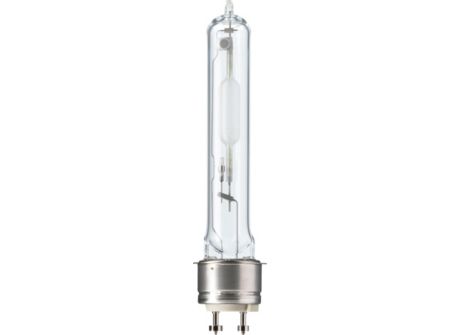

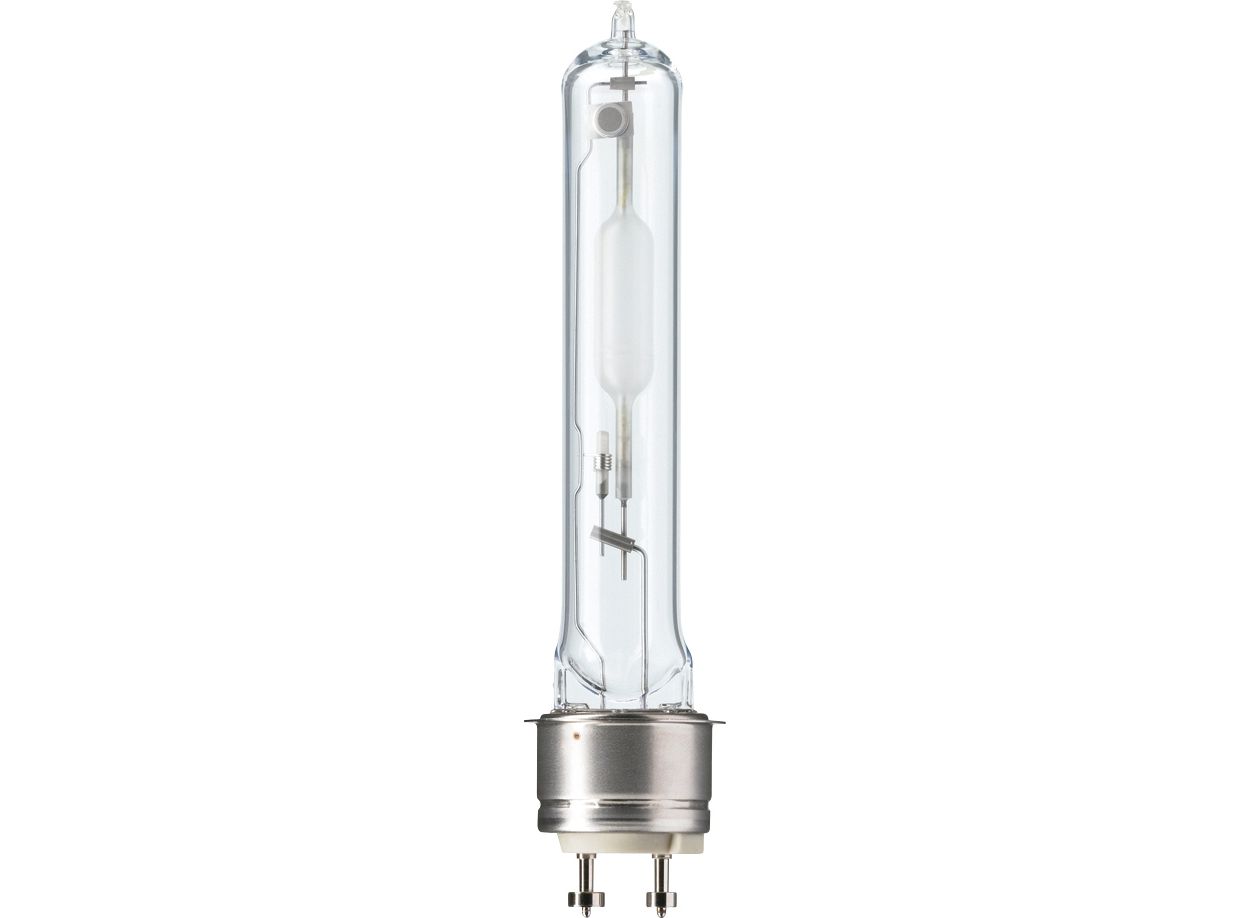

MST COSMOWH CPO-TW Xtra 140W/728 PGZ12

Specifications Show all

General information

Cap base	PGZ12  [ PGZ12]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	18000 h
Life to 10% failures (nom.)	20000 h
Life to 20% failures (nom.)	24000 h
Life to 50% failures (nom.)	30000 h
ANSI code HID	C189/E
LSF 2000 h Rated	99 %
LSF 4000 h Rated	99 %
LSF 6000 h Rated	99 %
LSF 8000 h Rated	99 %
LSF 12000 h Rated	99 %
LSF 16000 h Rated	97 %
LSF 20000 h Rated	90 %
LSF 24000 h Rated	80 %
LSF 30000 h Rated	50 %
	Sphere

Light technical

Colour Code	728  [ CCT of 2,800 K]
Luminous flux (nom.)	17600 lm
Luminous flux (rated) (nom.)	17600 lm
Colour designation	White (WH)
Chromaticity coordinate X (nom.)	0.447
Chromaticity coordinate Y (nom.)	0.4
Correlated Colour Temperature (Nom)	2800 K
Luminous efficacy (rated) (nom.)	125 lm/W
Colour rendering index (nom.)	72
LLMF 2000 h Rated	94 %
LLMF 4000 h Rated	93 %
LLMF 6000 h Rated	92 %
LLMF 8000 h Rated	91 %
LLMF 12000 h Rated	89 %
LLMF 16000 h Rated	88 %
LLMF 20000 h Rated	87 %
LLMF 24000 h Rated	86 %
Ratio scotopic/photopic lumens	1.30

Operating and electrical

Power (Rated) (Nom)	141.0 W
Ignition peak voltage (max.)	5000 V
Re-ignition time (min.) (max.)	900 s
Ignition time (max.)	30 s
Voltage (Max)	100 V
Voltage (Min)	88 V
Voltage (Nom)	94 V

Controls and dimming

Dimmable	Yes
Run-up time 90% (max.)	4 min

Mechanical and housing

Lamp Finish	Clear
Bulb shape	T19  [ T 19mm]

Approval and application

Energy Efficiency Class	E
Mercury (Hg) content (max.)	3.9 mg
Mercury (Hg) content (nom.)	3.9 mg
Energy consumption kWh/1,000 hours	141 kWh
	473349

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (nom.)	0.14

Luminaire design requirements

Bulb temperature (max.)	550 °C
Cap-base temperature (max.)	300 °C
Cap-Base Temperature (Max)-DUP(do not use)	572 °F

Product data

Full product code	871150020853815
Order product name	MASTER CosmoWhite CPO-TW Xtra 140W/728 PGZ12
EAN/UPC – product	8711500208538
Order code	20853815
SAP numerator – quantity per pack	1
Local code description	LAMP COSMOPOLIS WHITE CPOTW140/728
Numerator – packs per outer box	12
SAP material	928088805127
Net Weight (Piece)	0.040 kg
ILCOS code	MT-140/728-H-PGZ12-20/150
