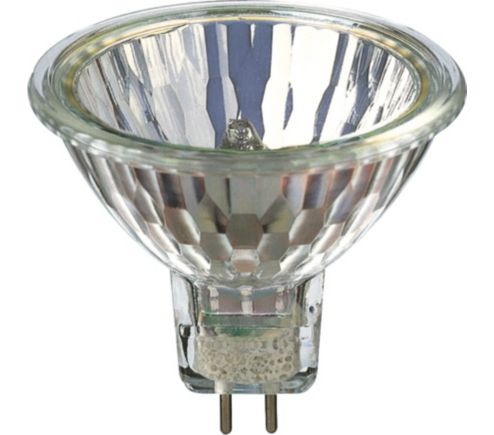

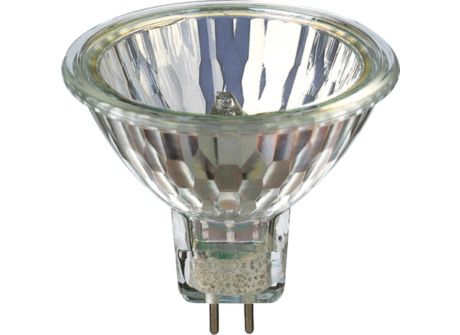

Ess MR16 20W GU5.3 12V 36D 1CT/10X5F

Specifications Show all

General information

Cap base	GU5.3  [ GU5.3]
Philips code	14596
Operating position	UNIVERSAL  [ Any or Universal (U)]
ANSI code halogen	BAB
Nominal lifetime (nom.)	2000 h
Switching cycle	8,000X
Rated lifetime (hours)	2000 h
Rated Lifetime (Years)	2 a

Light technical

Beam Angle (Nom)	36 °
Luminous intensity (max.)	400 cd
Rated beam angle	36 °
Correlated Colour Temperature (Nom)	3000 K
Colour rendering index (nom.)	100

Operating and electrical

Power (Rated) (Nom)	20 W
Lamp current (nom.)	1.67 A
Starting time (nom.)	0.0 s
Voltage (Nom)	12 V

Controls and dimming

Dimmable

Yes

Mechanical and housing

Bulb shape

MR16  [ 2inch/50mm]

Luminaire design requirements

Cap-base temperature (max.)	250 °C
Cap-Base Temperature (Max)-DUP(do not use)	482 °F

Product data

Full product code	871150088592065
Order product name	Ess MR16 20W GU5.3 12V 36D 1CT/10X5F
EAN/UPC – product	8711500885920
Order code	88592065
SAP numerator – quantity per pack	1
Numerator – packs per outer box	50
SAP material	924049517186
Net Weight (Piece)	0.032 kg
ILCOS code	HRGI-50-12-GU5.3-20/36
