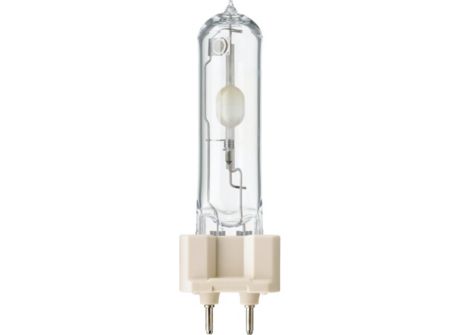

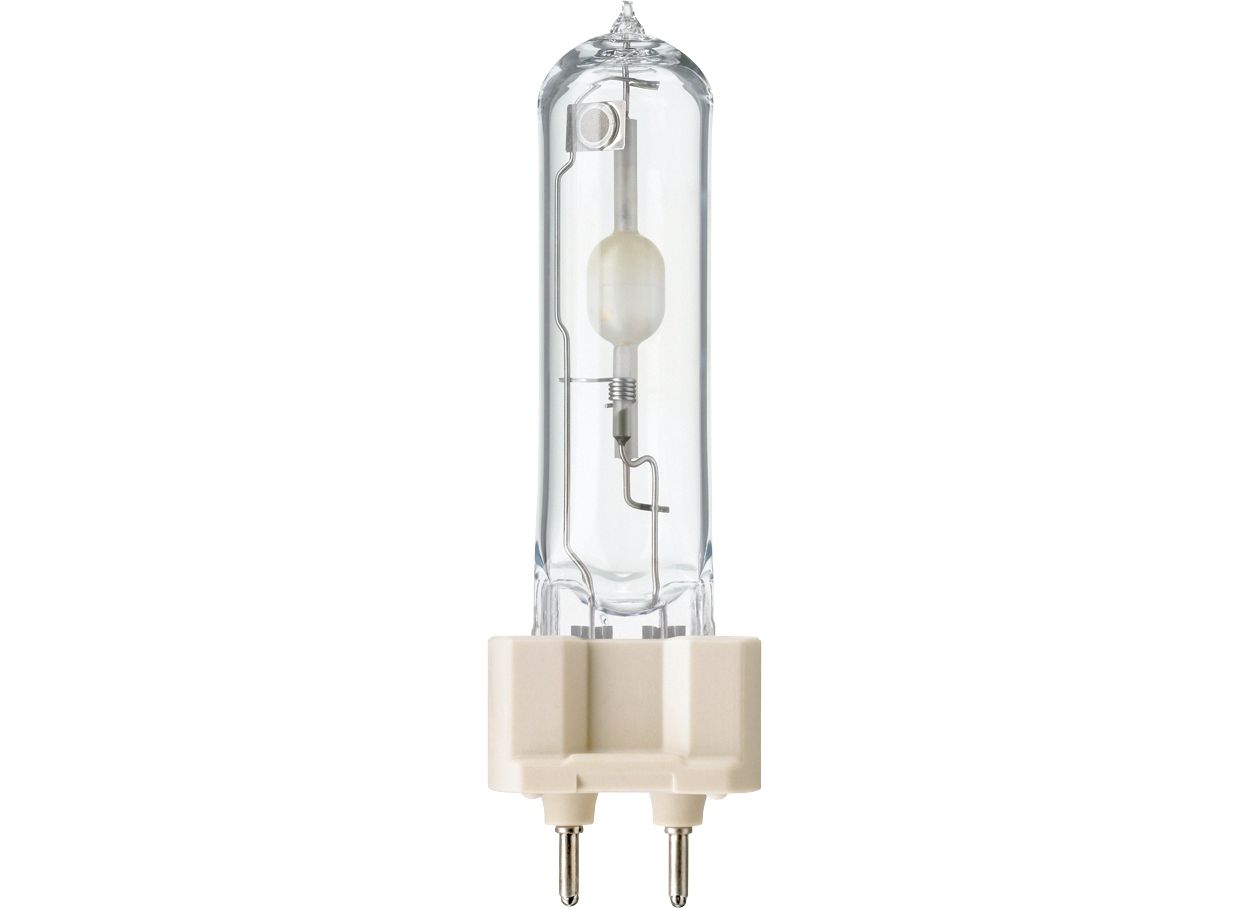

MASTERColour CDM-T Elite 70W/930 G12 1CT/12

Specifications Show all

General information

Cap base	G12  [ G12]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% failures (nom.)	12000 h
Life to 10% failures (nom.)	14000 h
Life to 20% failures (nom.)	16000 h
Life to 50% failures (nom.)	20000 h
ANSI code HID	C139/E

Light technical

Colour Code	930  [ CCT of 3,000 K]
Luminous flux (rated) (nom.)	7800 lm
Colour designation	Warm White (WW)
Lumen maintenance 1,000 hours (nom.)	97 %
Lumen maintenance 12,000 hours (nom.)	82 %
Lumen maintenance 10,000 hours (nom.)	83 %
Lumen maintenance 2,000 hours (nom.)	95 %
Lumen maintenance 4,000 hours (nom.)	90 %
Lumen maintenance 5,000 hours (nom.)	88 %
Chromaticity coordinate X (nom.)	0.435
Chromaticity coordinate Y (nom.)	0.396
Correlated Colour Temperature (Nom)	3000 K
Luminous efficacy (rated) (nom.)	103 lm/W
Colour-rendering index (min.)	87
Colour rendering index (nom.)	90

Operating and electrical

Power (Rated) (Nom)	73.2 W
Lamp current run-up (max.)	2 A
Lamp current (EM) (nom.)	1 A
Ignition supply voltage (max.)	198 V
Ignition peak voltage (max.)	5000 V
Ignition supply voltage (min.)	198 V
Re-ignition time (min.) (max.)	15 min
Ignition time (max.)	30 s
Voltage (Max)	90 V
Voltage (Min)	79 V
Voltage (Nom)	85 V

Controls and dimming

Dimmable	No
Run-up time 90% (max.)	3 min
Run-up time 90% (nom.)	1.5 min

Mechanical and housing

Lamp Finish	Clear
Bulb shape	T19  [ T 19mm]

Approval and application

Mercury (Hg) content (nom.)	6.6 mg
Energy consumption kWh/1,000 hours	80 kWh

UV

PET (NIOSH) (min.)	8 h/500lx
Damage factor D/fc (max.)	0.3

Luminaire design requirements

Bulb temperature (max.)	500 °C
Cap-base temperature (max.)	250 °C
Cap-Base Temperature (Max)-DUP(do not use)	482 °F
Pinch temperature (max.)	350 °C
Pinch Temperature (Max)-DUP(do not use)	350 °C

Product data

Full product code	871869648455500
Order product name	MASTERColour CDM-T Elite 70W/930 G12 1CT/12
EAN/UPC – product	8718696484555
Order code	48455500
SAP numerator – quantity per pack	1
Local code description	MASTERC CDM-T ELITE 70W/930 G12 1CT/12
Numerator – packs per outer box	12
SAP material	928185305129
Net Weight (Piece)	29.000 g
ILCOS code	MT/UB-70/930-H-G12-20/90
