    • Halogen reflector lamps – proven reliability

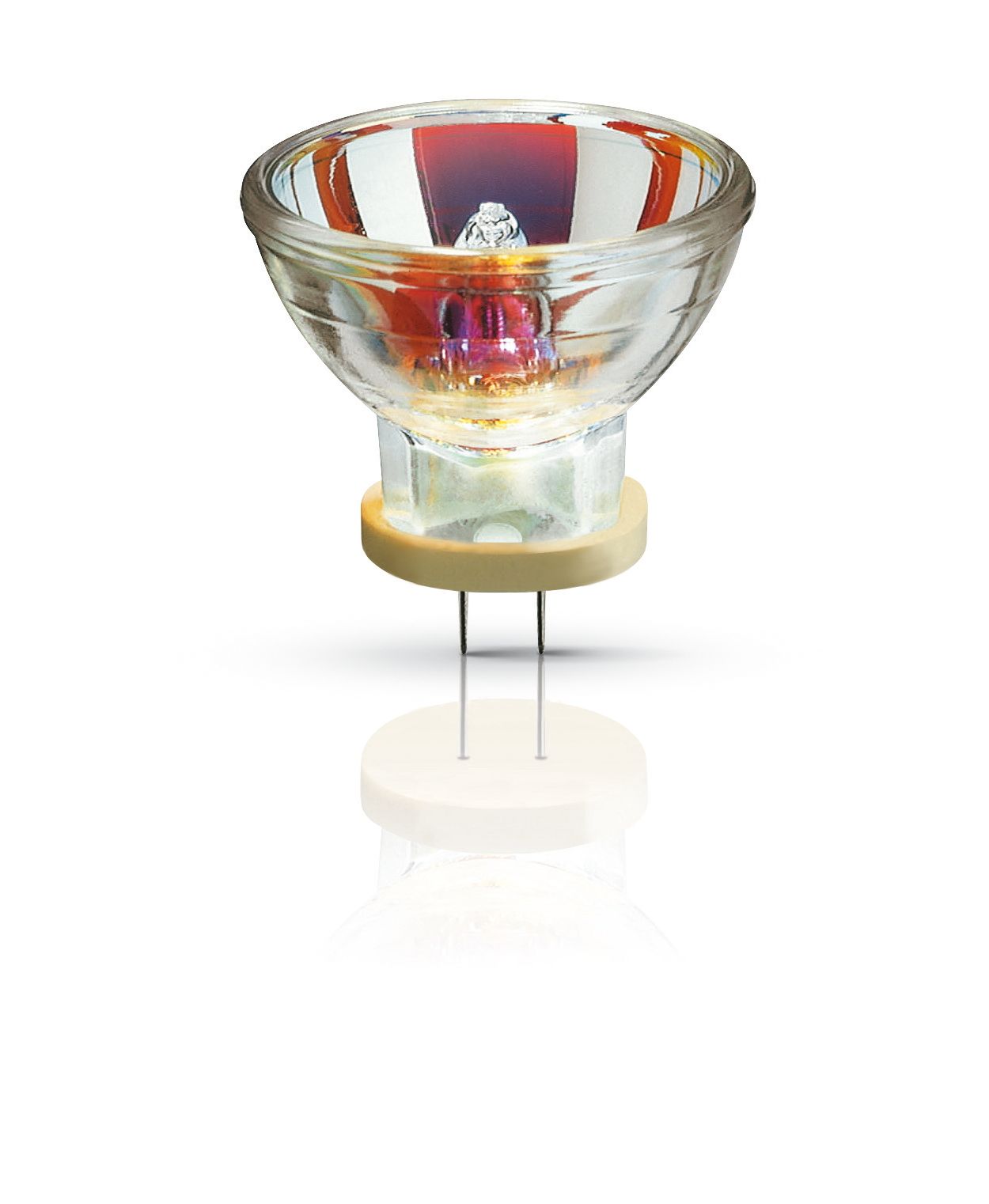

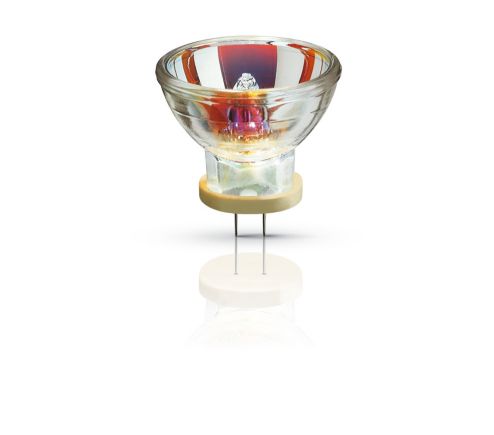

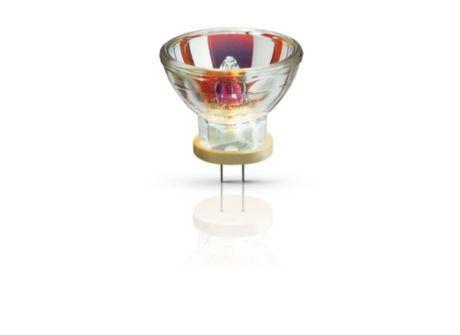

      6834FO 100W GZ6.35 12V 1CT/10X5F
      6834FO 100W GZ6.35 12V 1CT/10X5F

      6834FO 100W GZ6.35 12V 1CT/10X5F

      Order code: 40973760

      Full Product Code: 871150040973760

      Downloads

      Leaflet
      Size:374.4 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    GZ6.35  [ GZ6.35]
    Philips code
    6834FO
    ANSI Code
    EFP
    LIF code
    A1/231
    Operating position
    P90/P15
    Main application
    Projection
    Life to 50% failures (nom.)
    50 h
    J code
    -
    Light Technical
    Correlated colour temperature (nom.)
    3330 K
    Color rendering index (nom.)
    100
    Operating and Electrical
    Power (Rated) (Nom)
    100 W
    Voltage (Nom)
    12 V
    Controls and Dimming
    Dimmable
    Yes
    Mechanical and Housing
    Cap base information
    na  [ -]
    Bulb material
    Quartz-UV Open
    Reflector finish
    -
    Filament shape
    -
    Filament dimensions WxH
    -
    Luminaire Design Requirements
    Bulb temperature (max.)
    900 °C
    Pinch temperature (max.)
    400 °C
    Working distance WD
    32 mm
    Product Data
    Full product code
    871150040973760
    Order product name
    6834FO 100W GZ6.35 12V 1CT/10X5F
    EAN/UPC – product
    8711500409737
    Order code
    40973760
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    50
    Material no. (12NC)
    924048417104
    Net weight (piece)
    0.023 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    GZ6.35
    GZ6.35
    P90/P15
    P90/P15
